Portfolio. Performance. Value.

Stapling Made Smarter

TriStaple Technology

INTRODUCING THE iDRIVE™ ULTRA POWERED STAPLING SYSTEM

TriStaple Technology

SOLUTIONS FOR CHALLENGING TISSUE & APPLICATIONS

IDrive Articulation

PRECISE, UNLIMITED POINTS OF ARTICULATION1

Intelligent Compression

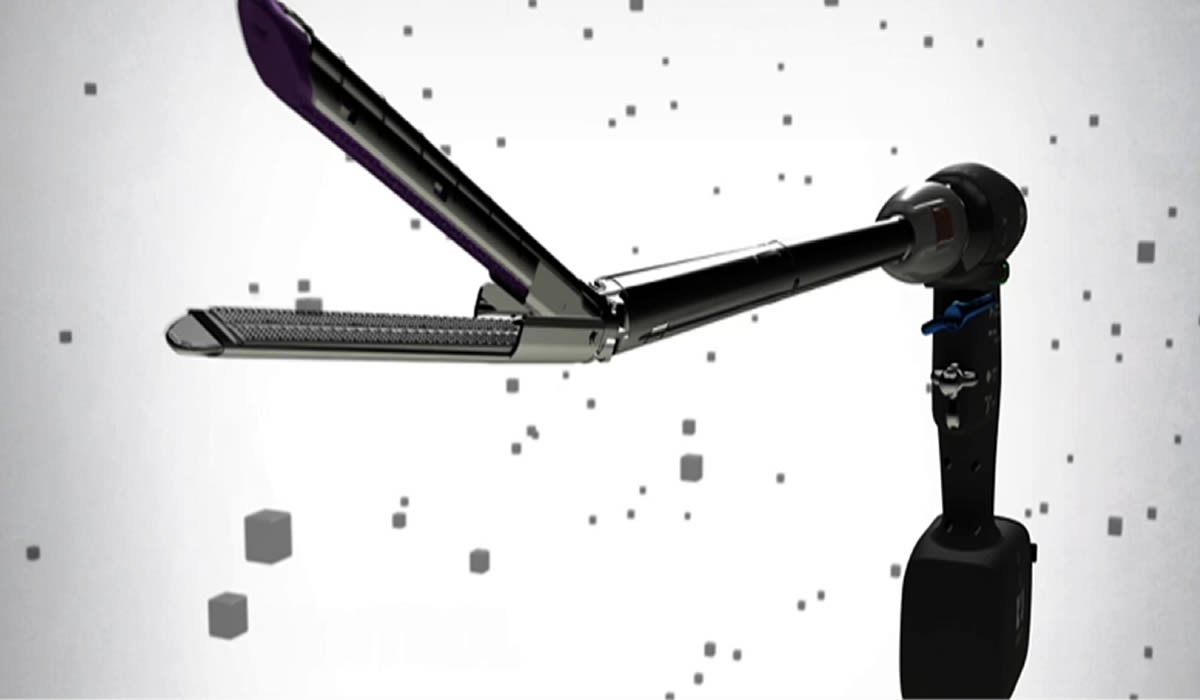

SEE INTELLIGENT COMPRESSION IN ACTION

Compatible with proprietary Endo GIA™ technology

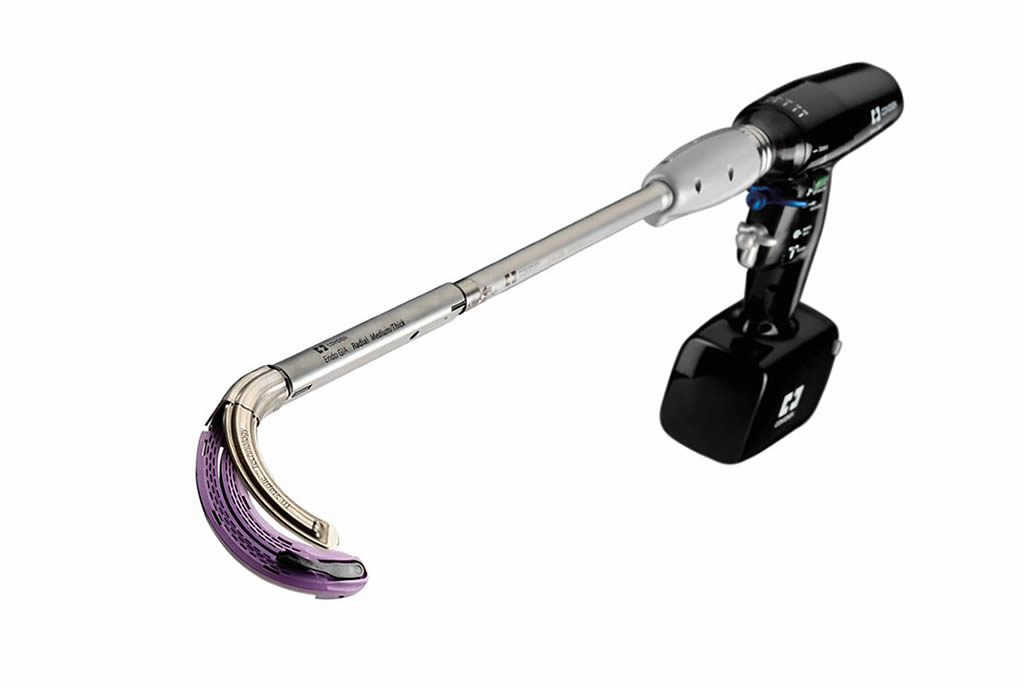

COMPATIBLE WITH PROPRIETARY ENDO GIA™ RELOADS

Intelligent Compression - Optimized

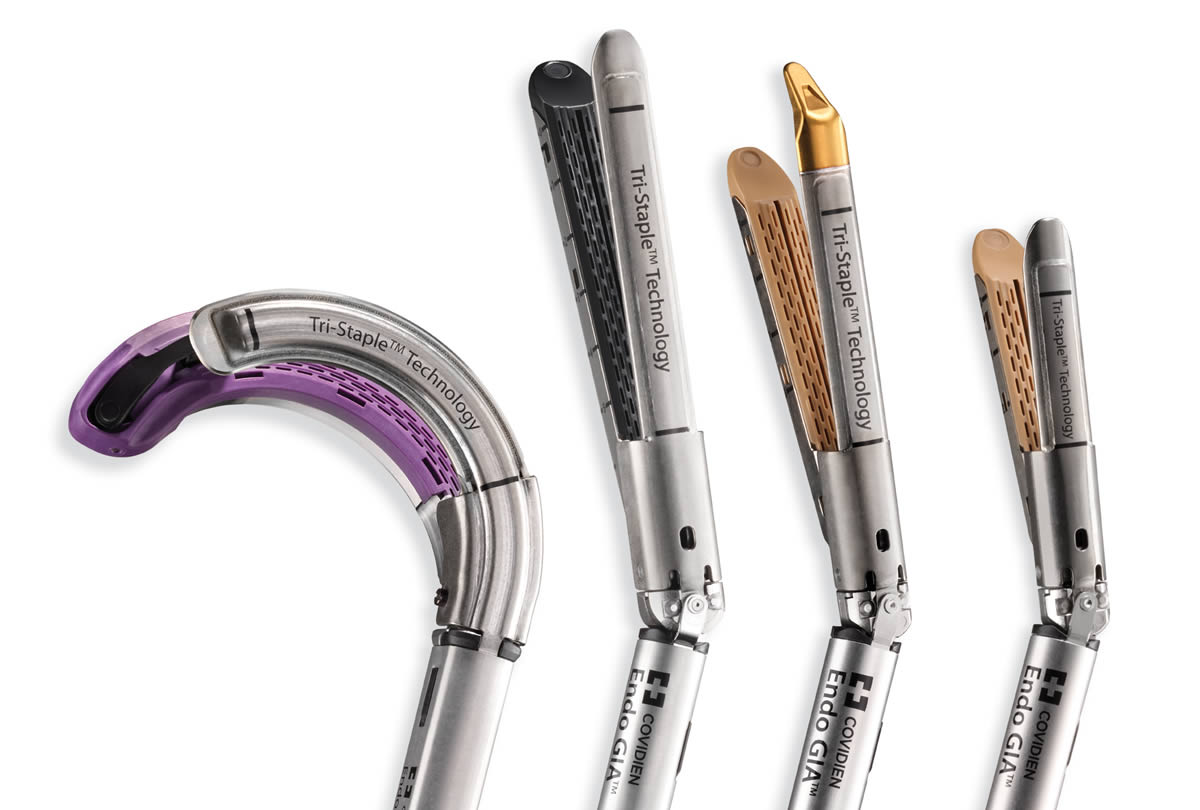

Covidien's Tri-Staple™ technology portfolio represents a comprehensive set of endostapling reloads designed to work in harmony with the natural properties of tissue. And now that performance can be optimized with the only fully-powered endostapler, Covidien's reusable iDrive™ Ultra powered stapling system. With one-handed, push-button operation, it enables an unprecedented level of precision, even in challenging variable tissue. This is intelligent compression…optimized by power.

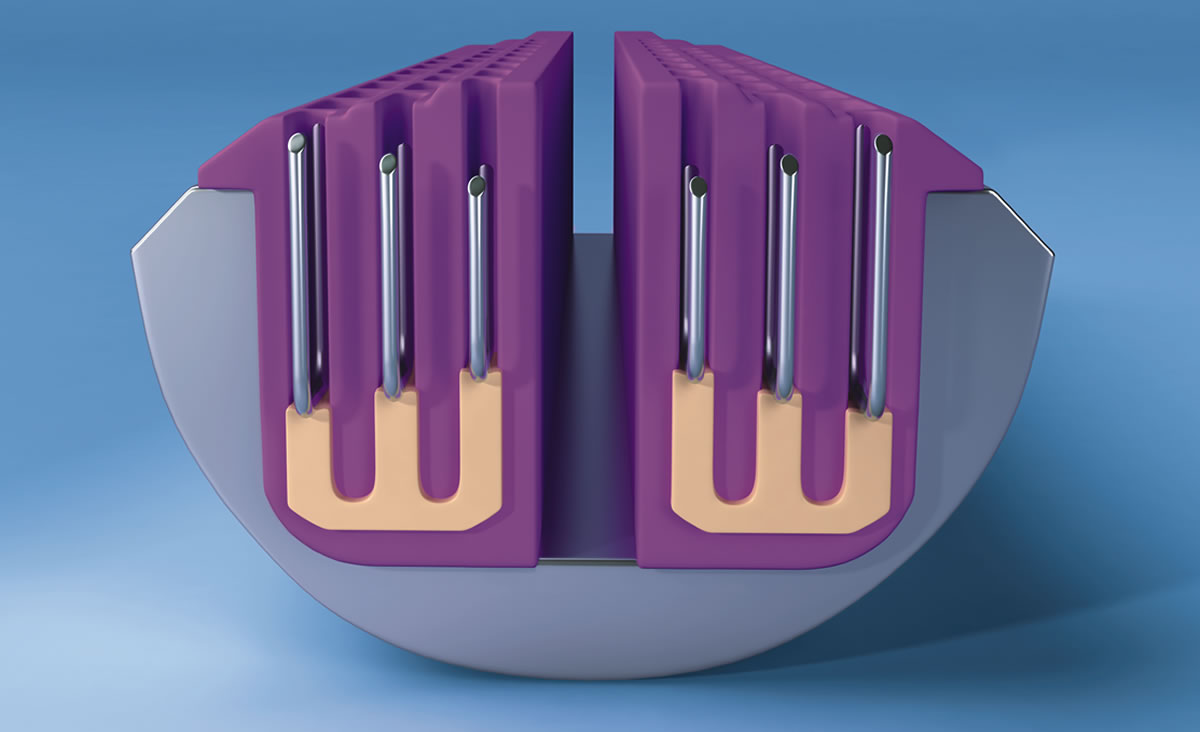

Tri-Staple™ technology reloads are designed to work in harmony with the natural properties of tissue to optimize performance before, during and after stapling. With its stepped cartridge face, Tri-Staple™ technology delivers graduated compression, optimizing interaction between the tissue and stapler because it:

The improved design of the stronger fixed anvil and I-beam incorporated into the Tri-Staple™ technology reload results in improved staple line strength, leak resistance and hemostasis when compared to the Universal Reloads3.

No single stapler can address the wide range of tissue management issues surgeons face on a daily basis. That's why Covidien has developed a portfolio of specialty stapling solutions within the Tri-Staple™ Technology portfolio to provide the right tool to meet each specific challenge. Click on Specialty Reloads to learn more.

1. When compared to Echelon Flex™ green reloads as part of a September 2, 2011 analysis comparing different stapler designs and their performance and impact on tissues under compression using two-dimensional finite element analysis (data on file).
2. When compared to Ethicon Echelon Flex™ green reloads as part of a bench study conducted August 16-18, 2011 that measured fluid perfusion into clamped media among different stapler designs (data on file).
3. Covidien Bench Top Testing. Tyvek Pull Apart Testing, In-Vitro Leak Comparison and In-Vivo Leak Comparison Test.



Click on the Specialty Reloads above for further details.

Below and Beyond in LAR

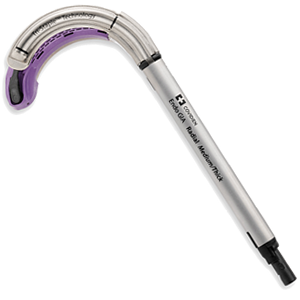

Setting new standards for access, maneuverability and staple line security in LAR procedures, the Endo GIA™ Radial Reload with Tri-Staple™ technology allows surgeons uncompromised access and visibility in the deep pelvis. Surgeons can operate with confidence across a broader range of tissue thickness and lower in the pelvis compared to Ethicon Contour®*1

Access Without Compromise

Tri-Staple

  • The Endo GIA™ Radial Reload with Tri-Staple™ technology delivers unprecedented access and ease of use.
  • It has the potential to get 1-2 cm lower in the pelvis compared to the Ethicon Contour®*1

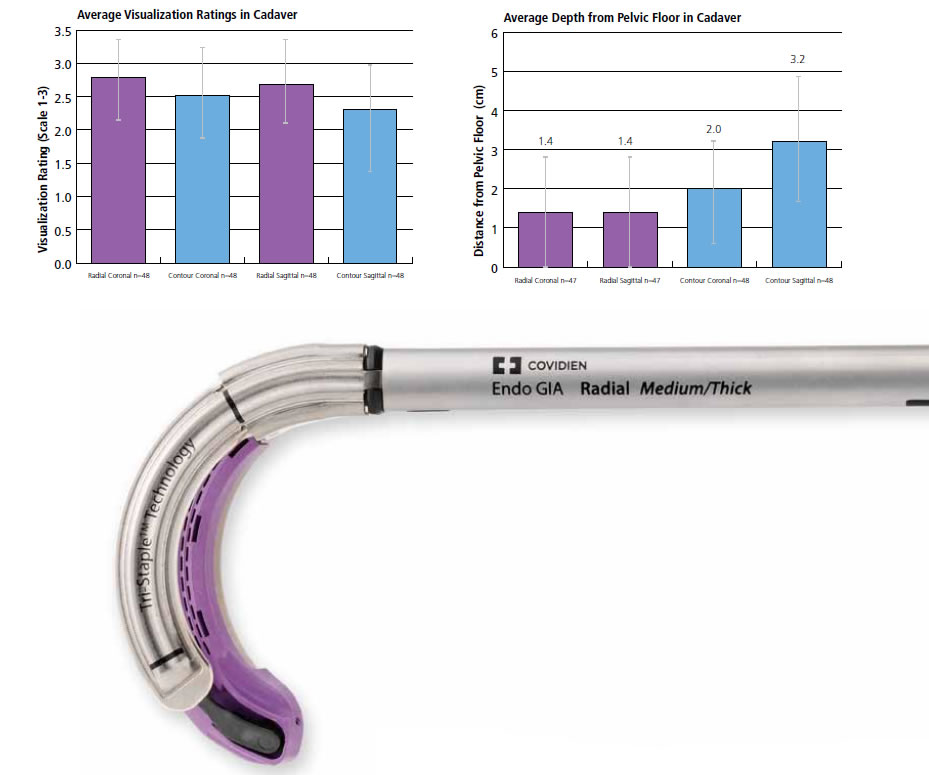

Facilitation of Better Distal Margins

Tri-Staple

  • The narrow profile and unique geometry improves visualization in the pelvis when compared to Contour*.
    View full-sized image

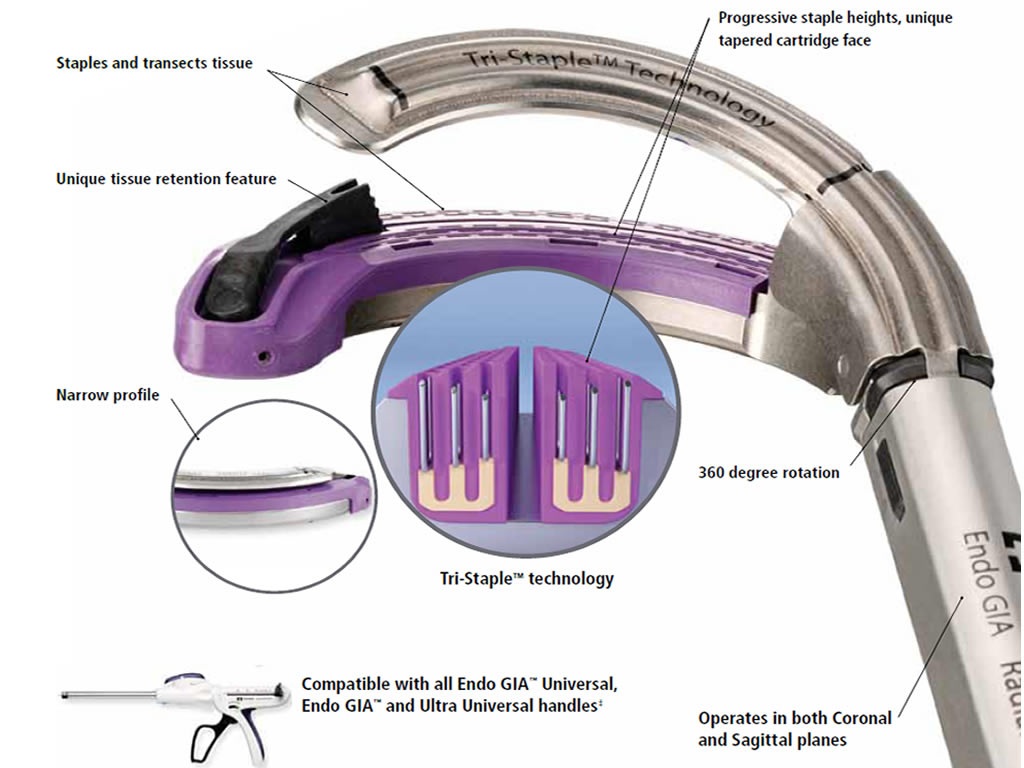

Innovative Tissue Retention Feature

Tri-Staple

  • This unique spring loaded tissue retainer affixed to the distal tip of the cartridge is designed to assist in guiding the device into place without entrapment of excessive tissue.
    View full-sized image

1. Pelvic depth, access, and rectal transection comparative human cadaver study sponsored by Covidien in May 2010 comparing the performance of the Endo GIA™ Radial Reload with Tri-Staple™ technology to the Ethicon Contour® Curved Cutter Stapler. Statistically significant results in both coronal and sagittal planes (data on file).

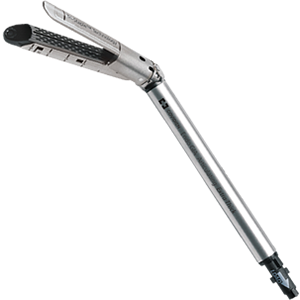

In Extra-Thick Tissue, Anything Less Just Comes Up Short

Consistent staple formation can be challenging, especially in thick tissue bariatric and thoracic applications, such as laparoscopic sleeve gastrectomies or wedge resections. The Endo GIA™ Black Reload with Tri-Staple™ technology was designed to provide superior staple formation1 and strength2 in thick tissue applications.

Superior Staple Formation1

Excellent Staple Formation

  • The only 5.0mm staple height - tallest on the market
  • In head-to-head comparisons, the Endo GIA™ Black reload with Tri-Staple™ technology outperformed the Echelon Flex™ Green in thick tissue1

Consistent Performance in Thick Tissue

Strength Test

  • Thickest indicated tissue range for any stapler on the market (2.25 mm – 3.00 mm)3
  • A new knife blade with every firing ideal for thick tissue applications
  • Designed to handle variable tissue thicknesses

Superior Staple Line Strength2

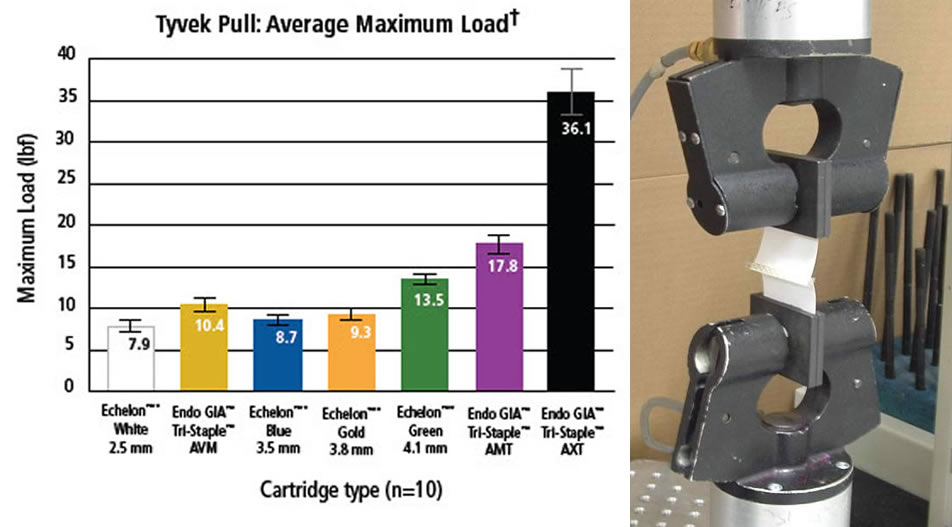

Strength Chart

  • Superior staple line strength compared to Echelon™ and Endo GIA™ Universal™ stapling products2
  • More than double the strength compared to the Echelon™* green reload4

1. Staple line evaluation of two staple designs (Endo GIA™ Black 60mm reloads with Tri-Staple™ technology and Echelon Flex™* Green 60mm reloads) in explanted porcine stomachs.
2. Tri-Staple Technology Bench Top Testing; Tyvek Pull Apart Testing; Data on file.
3. Indicated tissue thickness range: Endo GIA™ black reload (2.25mm to 3.00mm) vs. Echelon Flex™ green reload (2.00mm)
4. Staple lines were fired into Tyvek® media and pulled apart until failure (n=10). These tests demonstrated that the Endo GIA™ with Tri-Staple™ technology provides superior staple line strength compared to Echelon™ and Endo GIA™ Universal™ stapling product. The Endo GIA™ axt black reload with tri-staple™ technology has more than double the strength compared to the Echelon™ green

When Challenging Anatomy Throws You a Curve, Respond with Your Own

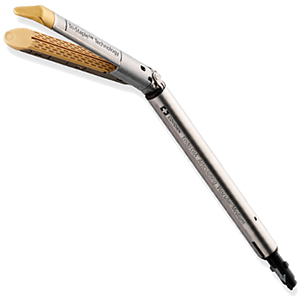

The unique Endo GIA™ Curved Tip Reload with Tri-Staple™ Technology is the only stapler designed with a curved tip at the distal end of the anvil to provide enhanced visibility and maneuverability around target tissues and vessels.

Visualization, Dissection & Manipulation

  • Gold curved tip provides enhanced visualization of anvil.
  • Atraumatic curved tip can be used for blunt dissection

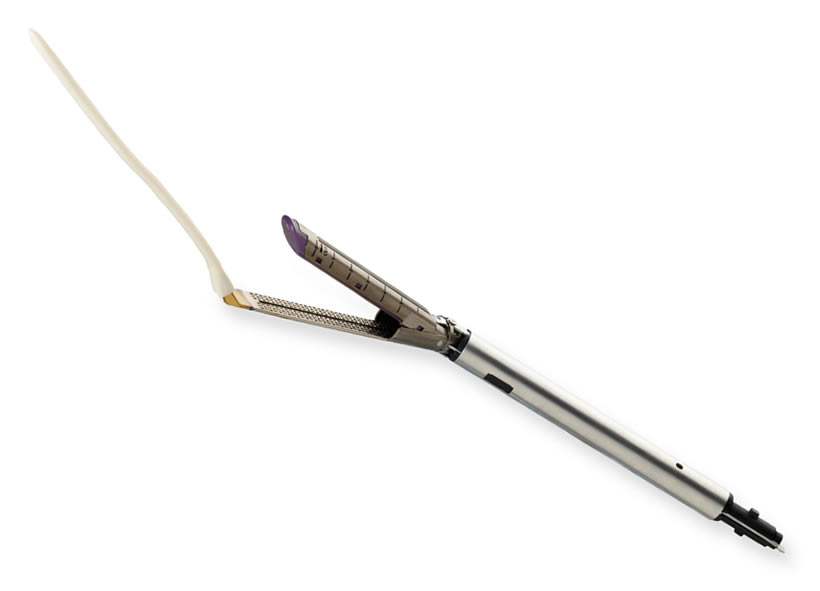

  • Radiopaque Flexible Introducer* designed to guide the fixed anvil around target tissues/vessels

Potential for O.R. Time Savings

Clinical Paper

  • In a retrospective study of 45 patients, the curved tip was associated with better time savings during thoracoscopic lung resection procedures1.
  • Click here to read the clinical paper.

Dr. Thomas Fabian

Dr. Thomas Fabian

1. "Anvil Extension Technology in Thoracic Surgery"; Annals of Thoracic Surgery; 2012

It Comes Up Big when You're Working In Tight Spaces

The 30 mm Reload with Tri-Staple™ technology is the only reload designed specifically for use in situations where space is limited. Its extra-short design provides unprecedented access and maneuverability in the tightest of cavities while still delivering the performance of Tri-Staple™ technology.

  • The 30 mm length was designed to provide ease of use in MIS procedures and enables improved access and maneuverability in tight cavities.
  • The 30 mm reload is also available in a curved tip option, facilitating improved access to vessels and anatomical structures in small cavities, such as vascular applications.

Endo GIA™ Ultra Universal Handle: One Size Fits All Reloads

Benefit from inventory efficiencies and an improved user experience delivered from the universal handle platform. Endo GIA™ Ultra Universal staplers can be used with all existing Endo GIA™ Universal reloads and Endo GIA™ reloads with Tri-Staple™ technology. Three shaft lengths deliver greater flexibility for procedure-specific use.

Delivering Results to the Bottom Line: Achieve SKU Standardization

According to a 2010-2011 IMS database analysis, the Covidien stapling platform provides significant opportunities to drive efficiency, resulting in SKU standardization and reduced carrying costs.

Universal Platform and Tri-Staple™ Technology Efficiencies:

  • 14% fewer handles used when compared to Ethicon1
  • 69% total SKU reduction2
  • 37% reduction in stocking levels3
  • 37% reduction in inventory footprint2
  • 54% reduction in excess waste2

1. Handle waste reduction calculation based on number of handles used for 500 total cases between July 2010 – July 2011 for Ethicon and Covidien respectively. Assumes 1 = Covidien handle needed per case.
2. Total SKU reduction, inventory and waste based on national annual Covidien and Ethicon reload and handle usage reported by IMS (July 2010-2011)
3. Assumes a 2-5 day supply of product in storage, based on focus group research findings during the August 2011 meeting of The Association of Healthcare Resource and Materials Management (AHRMM).

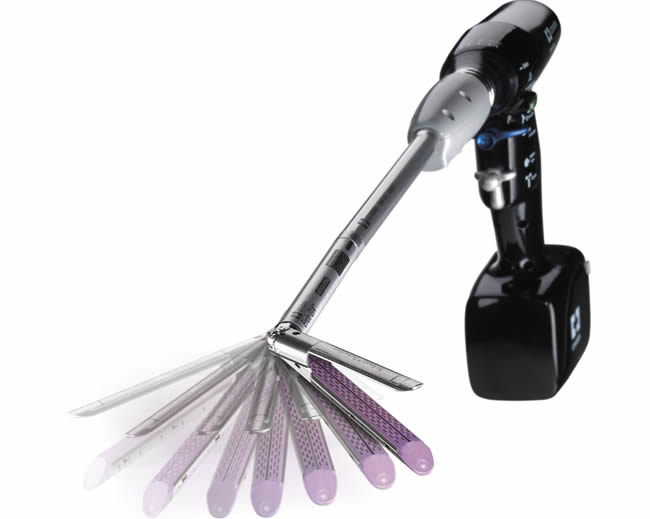

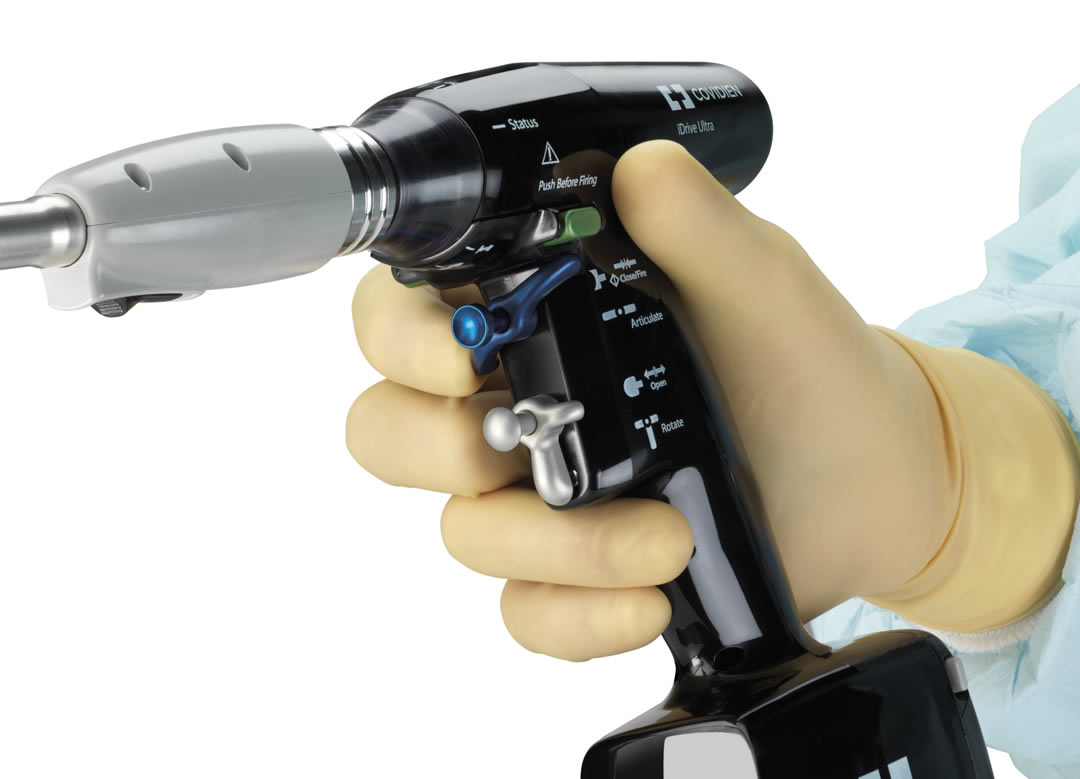

Introducing the only fully-powered endostapler. Compatible with Covidien's market-leading portfolio of Endo GIA™ reloads with Tri-Staple™ technology, the new reusable iDrive™ Ultra powered stapling system offers one-handed, push-button operation. Eliminating manual firing force and improving maneuverability means greater precision, consistency, and control for every procedure.

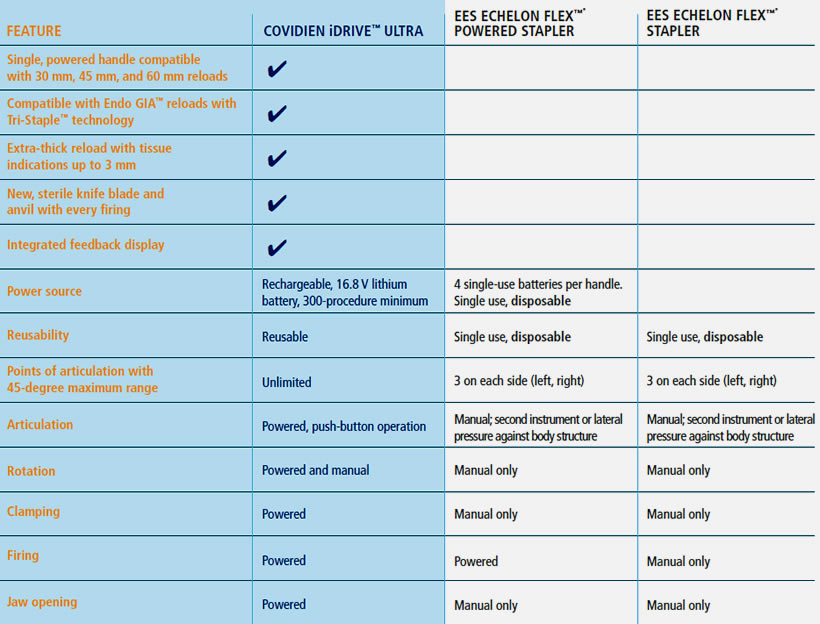

Compare the iDrive™ Ultra Powered Stapling Difference

Precise, Consistent Operation

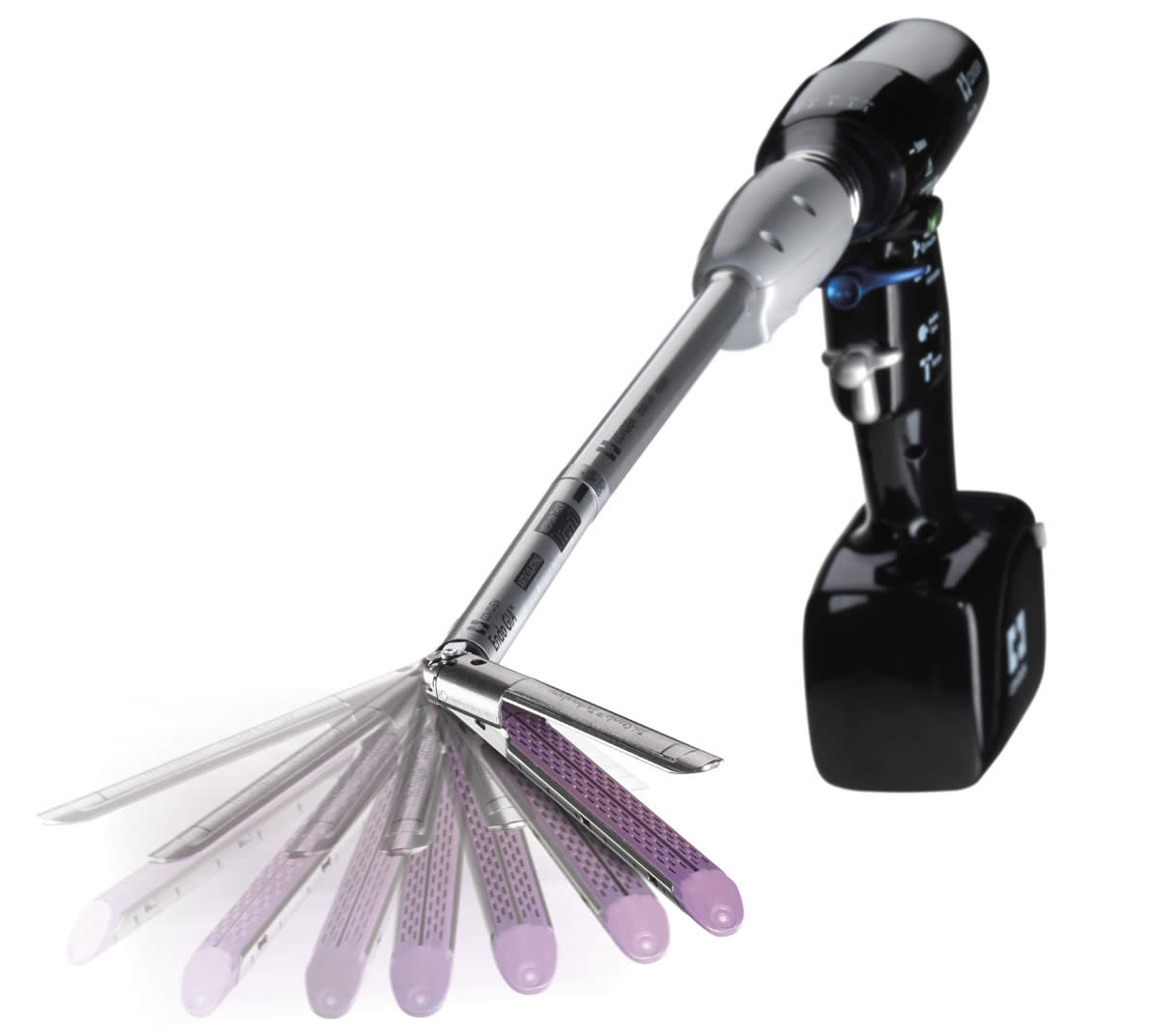

  • Unlimited points of articulation1
  • Fine control of reload jaw opening
  • Micro-processor controlled firing speed reduces variability in application
  • Unprecedented stability reduces unwanted motion by 61%2

Intuitive, Finger-Tip Control

Tri-Staple

  • True one-handed operation
  • Ergonomic, push-button activation
  • Fully powered: articulation, rotation, clamp, fire, and open

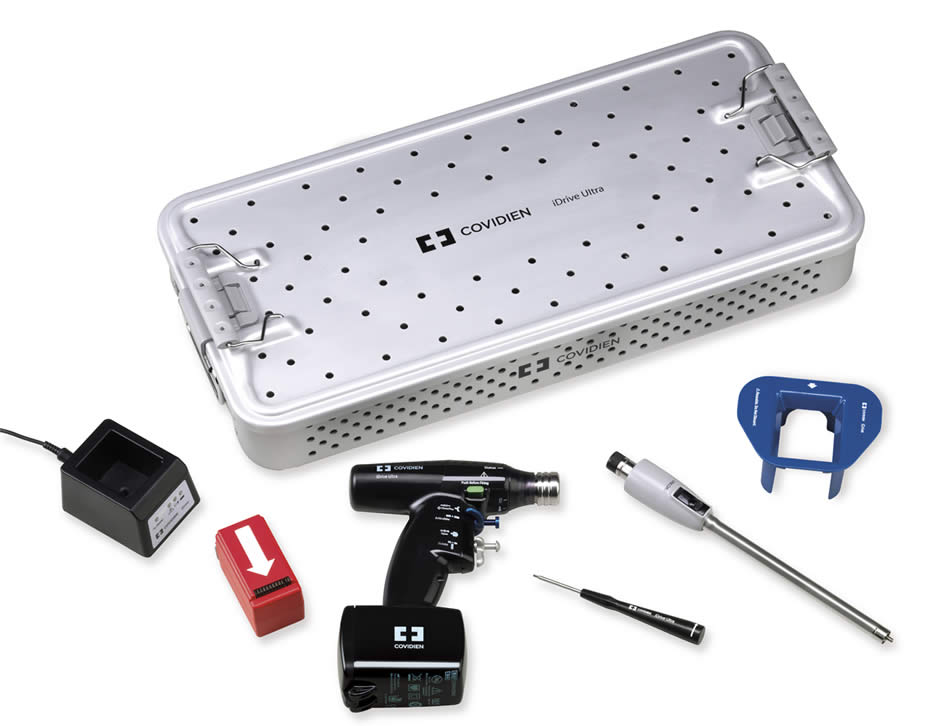

Responsible, Reusable Design4

Tri-Staple

  • Reusable design removes 50 disposable, single-use staplers from waste stream, and saves valuable inventory space
  • Rechargeable battery eliminates 1,199 disposable batteries when compared to Echelon Flex™ Powered Endopath® Stapler3

1. Unlimited points of articulation between the 45-degree left and right limit.
2. Average 61% reduction in reload tip travel during firing when compared to Ethicon Endo-Surgery Echelon Flex™ in indicated media, n=10 surgeons, 172 total trials, p <>
3. The Echelon Flex™ Powered Endopath® Stapler includes a 4-battery (CR-123A) pack to be disposed of after using the device.
4. The sterilization tray and manual retraction tool are under development, and are not available for sale in all regions.

Reference Brochures

Reload Selection Chart
Click here to download

Endo GIA™ Reloads with Tri-Staple™ and Endo GIA™ Ultra Universal Staplers Pamphlet
Click here to download

Endo GIA™ Radial Reload with Tri-Staple™ Technology Brochure
Click here to download

iDrive Ultra System Brochure
Click here to download

iDrive Ultra System Quick Reference Guide
Click here to download

iDrive Ultra Cleaning & Sterilization Guide
Click here to download

Always refer to the applicable Instructions for Use supplied with each product for complete indications, contraindications, warnings, precautions and instructions prior to use.
